تعارف:

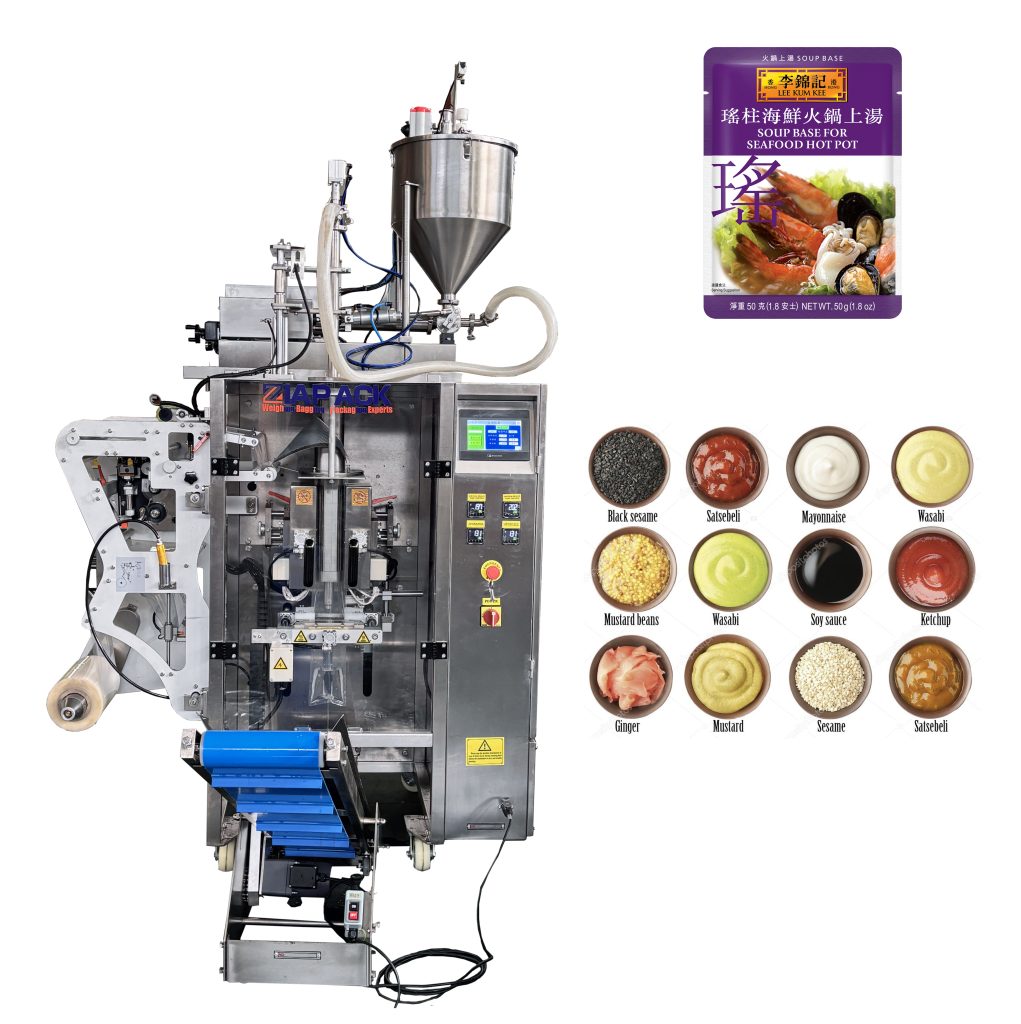

This machine unit is including one set ZL320 vertical bag forming filling sealing machine, one set piston pump and one set output elevator.The whole machine unit can reach automatic bag making ,product filling sealing and date coding .Widely used for packing liqid product .

خصوصیات:
- Attractive bag type to satisfy your high demand.
- It completes bagging, sealing, date printing, punching, counting automatically;
- Film drawing down system controlled by servo motor. Automatic film rectifying deviation function;
- Famous brand PLC. Pneumatic system for vertical and horizontal sealing;
Easy to operate, low maintenance, compatible with different internal or external measuring device.
- Suitable to packing granule, powder, such as tee,milk powder, rice flour, coffee, snacks, nuts, potato chips, etc.
- The way of bag making: the machine can make pillow-type bag and standing bag according to customer’s requirements.
Main machine electric parts:
| نام | برانڈ |
| Touch-sensitive screen | WEINVIEW |
| Programmer controlled system | SIMENS |
| Servo motor | SIMENS |
| Servo driver | SCHNEIDER |
| سلنڈر | FESTO |
| Electromagnetic valve | SMC/Airtac |
| انٹرمیڈیٹ ریلے | OMRON/SCHNEIDER |
| Photoelectric eye | SICK |
| طاقت | ZHANGXIN |
| Solid state relay | ڈیلٹا |
| Thermometer control | OMRON |
Parameters:
| اشیاء | مواد |
| صلاحیت | 20-50bag/min (For 300g sauce,the speed is around 15 bags/minute) |
| بیگ کا سائز | (L) 50-200mm (W) 60-150mm |
| بیگ کی قسم | 3-side-seal,4-side-seal |
| فلم کی چوڑائی | Max 360mm |
| فلم کی موٹائی | 0.04-0.09 ملی میٹر |
| ایئر کی کھپت | 0.8Mpa 0.5m3/min |
| مین پاور / وولٹیج | 3KW/380V 50Hz |
| طول و عرض | L1140*W1460*H1470mm |
| سوئچ بورڈ کا وزن | 700 کلوگرام |
