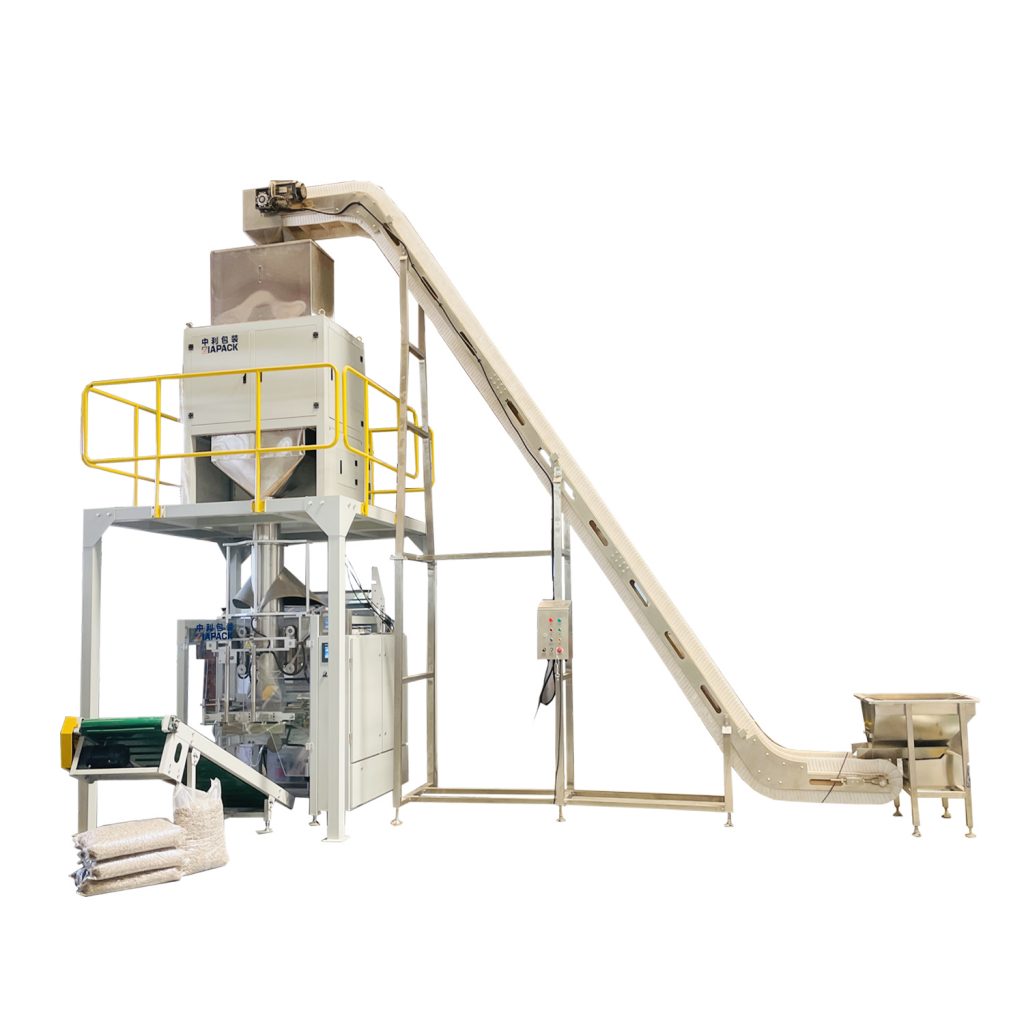

Automatic15-20 kg wooden pellets bag forming filling packaging machine
تعارف:
This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .
تکنیکی پیرامیٹرز:
Weighing Range: 1kg-5kg
Packaging Speed:12-30 bags/min
Bag size: (150-420)*(120-350)mm(L*W)
Max film width:720mm
کمپریسڈ ہوا کی ضرورت: 0.6Mpa 0.65m³/منٹ
Reel outer diameter: 450mm
کور اندرونی قطر: 75 ملی میٹر
Machine weight: 950kg
Power source: 6.5kW 380V±10% 50Hz
اہم خصوصیات اور خصوصیات:
- A wide range of pouches: Pillow and Gusset pouches.
- تیز رفتار: 20-50 بیگ/منٹ
- کام کرنے میں آسان: PLC کنٹرولر اور رنگ ٹچ اسکرین، ٹچ اسکرین پر غلطی کا اشارہ۔
- ایڈجسٹ کرنے کے لئے آسان: مختلف پاؤچ تبدیل کرنے کے لئے تقریبا 10 منٹ.
- فریکوئینسی کنٹرول: رینج کے اندر تعدد تبادلوں کی رفتار سے ایڈجسٹ کیا جا سکتا ہے.
- اعلی آٹومیشن: وزن اور عمل پیکنگ میں غیر جانبدار، ناکامی جب خود کار مشین الارم.
- حفاظت اور حفظان صحت:
- کوئی فلم نہیں، مشین الارم کرے گی۔
- مشین الارم اور جب تک ناکافی ہوا کا دباؤ روکا.
- سیفٹی کے محافظوں کے ساتھ حفاظتی سوئچز، مشین الارم اور حفاظتی گارڈوں کو کھولنے پر روکنا.
- Hygienic construction, the product contact parts are adopted sus316stainless steel.
- ZLC2-15k double bucket weighing machine
تعارف:
This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food
خصوصیات:
- 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
- SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
- Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
- Amplitude can be automatically adjusted for easy operation.
- Each hopper can be used as single weigher.
- 6. With cylinder controlfor door open-close control , which is faster and more stable.
- 7. Modular control system for easy maintenance and cost-saving.
Parameter:
Weighing range :10-15kg
Accuracy :±0.5-0.8%
Min scale :0.1gram
Max speed :20-40bag/min
HIM:7” touch screen
Power supply :AC220±10% 50HZ /60HZ 1KW
